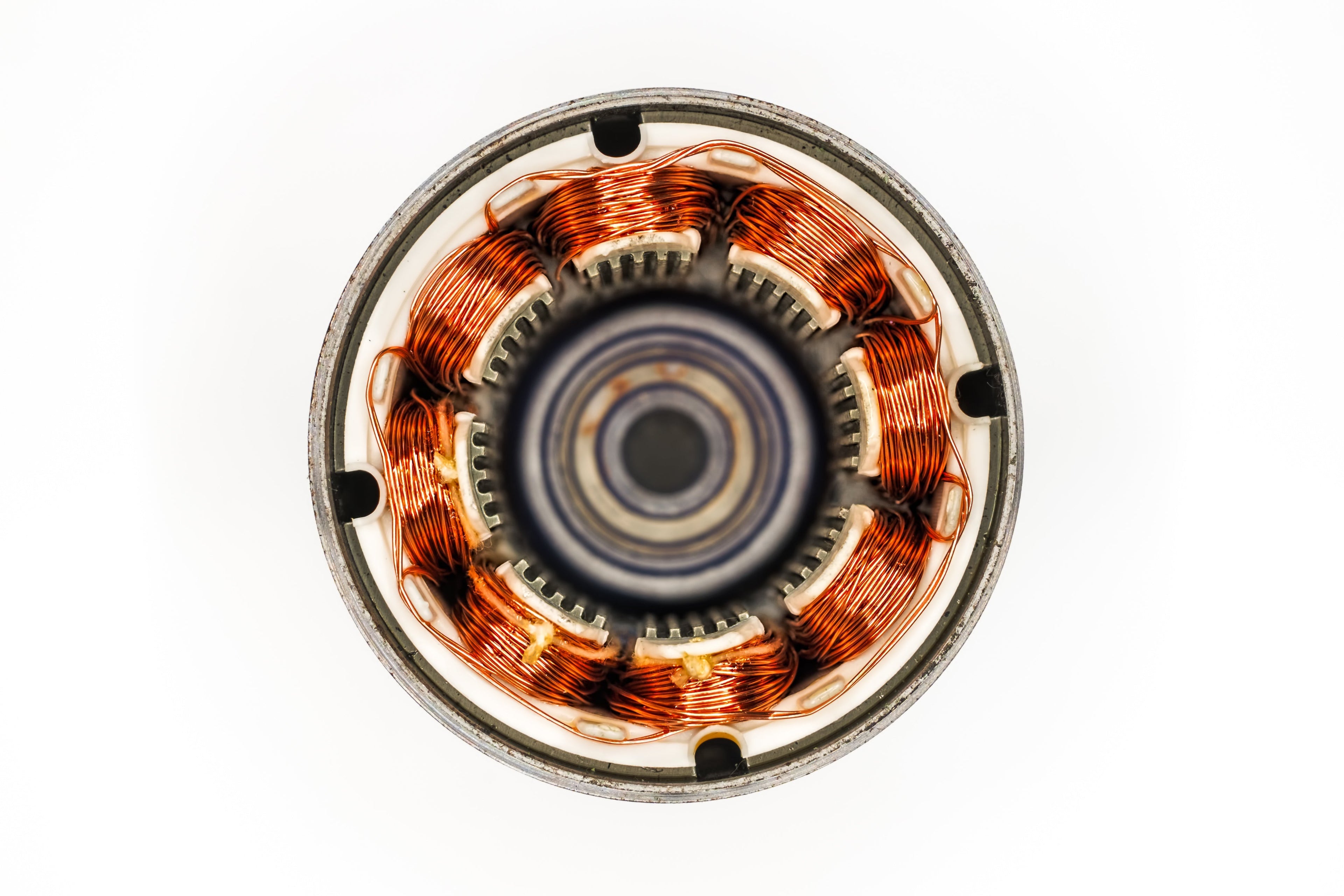

Mechanical failures leave evidence.
Grease on the floor. Heat you can feel from three feet away. A noise that makes new technicians uncomfortable and experienced ones reach for their phones to document it before anyone can pretend it isn't happening.
Electrical failures are cleaner. More patient. More expensive.
Insulation doesn't announce itself. Winding degradation doesn't vibrate. Phase imbalance doesn't leave a puddle. Electrical failures develop quietly, pass every visual inspection with flying colors, and then one day the motor simply doesn't start and nobody has a good explanation.
That's not bad luck. That's a PM program with a blind spot the size of the maintenance budget.
If you want the broader context for why motor PM programs keep missing failure modes they were never designed to find, start with what a real motor PM program actually looks like.
Electrical Failures Don't Announce Themselves
Which is exactly how they kill motors that passed their last PM with zero findings.
The uncomfortable truth is that most motor PM programs were built around what technicians can see, hear, and feel. That covers mechanical degradation reasonably well. It covers electrical degradation almost not at all.
Electrical failure modes develop at the component level — inside windings, across insulation layers, within the relationship between phases — in places that don't produce noise, don't generate visible heat, and don't show up on a vibration plot until the damage is already catastrophic.
A PM program that only inspects what it can observe directly is half a program. The other half is where the expensive failures live.
Insulation Breakdown: The Failure Nobody Sees Coming
Insulation doesn't fail suddenly.
It degrades thermally, chemically, and mechanically over time — a process so gradual that each individual inspection finds nothing worth flagging while the cumulative damage builds toward a failure that will feel completely unexpected.
Heat is the primary accelerant. For every 10°C rise above rated operating temperature, motor insulation life is roughly cut in half. This is known as the Arrhenius equation applied to insulation aging, and it means that a motor running consistently hot isn't just uncomfortable — it's on an accelerated timeline that most PM programs aren't tracking.
Chemical contamination compounds the problem. Moisture, oil vapor, and process chemicals attack insulation integrity in ways that don't produce symptoms until the breakdown voltage of the insulation is compromised enough to cause winding faults.
Mechanical stress from vibration, thermal cycling, and repeated starts adds physical fatigue on top of thermal and chemical degradation. The insulation cracks microscopically. Partial discharge begins. The motor keeps running while the damage accumulates.
What PMs miss: Most programs check for obvious contamination and abnormal heat at the housing. Neither catches insulation degradation in progress. Insulation resistance testing — megohm testing — is the minimum standard for catching this failure mode before it becomes a rewind or a replacement. Trending megohm values over time is more valuable than any single reading. A motor that trends from 100 megohms to 40 megohms over eighteen months is telling you something. A single reading of 40 megohms tells you almost nothing without the history behind it.
Polarization index testing adds another layer — the ratio of a ten-minute to one-minute insulation resistance reading reveals insulation condition in a way that a single megohm test cannot. A PI below 2.0 on a motor that's been trending downward is a motor that's earning a place on your replacement list.
Phase Imbalance and Voltage Unbalance: The Invisible Load
Motors are designed to operate on balanced three-phase power.
They rarely do.
Voltage unbalance — even at levels that seem trivially small — creates disproportionate current unbalance in motor windings. A 3.5% voltage unbalance produces roughly 25% current unbalance. That current unbalance generates heat in the affected winding at a rate the motor's thermal protection was never designed to anticipate.
The motor runs. Temperature rises incrementally. Insulation ages faster. Bearings run hotter. The motor passes every visual PM while quietly accumulating damage that will eventually express itself as a winding failure or a bearing that failed "for no reason."
Causes of voltage unbalance include single-phase loads distributed unevenly across phases, open delta transformer configurations, poor connections at terminals and switchgear, and failed or deteriorating power factor correction capacitors. None of these announce themselves during a typical motor inspection.
What PMs miss: Checking voltage at the motor terminals under load and calculating unbalance percentage should be a standard PM task for any motor where power quality is a concern. NEMA MG-1 recommends derating motors operating above 1% voltage unbalance. Above 5% unbalance, the motor should not be operated. Most PM programs never measure it at all.
Current unbalance measurement adds another data point — if voltage is balanced but current is not, the problem is inside the motor. If both are unbalanced, the problem is upstream. That distinction matters for troubleshooting and for knowing whether you're managing a power quality problem or a motor condition problem.
Bearing Electrical Erosion: The Failure VFDs Create
Variable frequency drives introduced a failure mode that didn't exist at scale before they did.
EDM — electrical discharge machining — occurs when high-frequency voltage pulses from VFD switching create shaft voltages that discharge through motor bearings to ground. The discharge path is through the bearing's thin oil film, which is not designed to carry electrical current and responds to repeated discharges the way any metal surface responds to controlled electrical erosion — by developing a characteristic frosted, pitted surface finish called fluting.
Fluted bearings fail. They fail with a distinctive washboard pattern on the raceway that is unmistakable on inspection but invisible until the bearing is disassembled. Before failure, the bearing may produce a subtle high-frequency noise that gets rationalized as normal VFD operation. The vibration signature may show nothing unusual until the damage is advanced.
The damage accumulates with every operating hour on a VFD-driven motor without mitigation. Insulated bearings, shaft grounding rings, and common mode chokes are the standard mitigations. Motors operating on VFDs without these protections are accumulating EDM damage right now whether anyone is checking or not.
What PMs miss: Most PM programs treat VFD-driven motors identically to across-the-line started motors. They aren't the same machine from a failure mode standpoint. PM programs for VFD-driven equipment need to account for this explicitly. Shaft voltage measurement, grounding ring inspection, and bearing condition monitoring with awareness of EDM signatures should be standard tasks on any VFD-driven motor PM. They almost never are.
Where Predictive Tools Fit
Visual inspection and basic electrical measurements catch some of this.
Not enough of it.
Motor circuit analysis — offline testing that measures impedance, inductance, and resistance across all three phases — can identify winding faults, turn-to-turn shorts, and rotor bar conditions that no visual inspection will ever find. It's not a replacement for PM tasks. It's the layer underneath them that catches what PM tasks can't reach.
Infrared thermography finds temperature differentials at electrical connections, switchgear, and motor housings that indicate resistance problems before they become failures. A connection running 40°C above ambient isn't a finding for next month's PM. It's a finding for this week.
Neither tool replaces a well-structured PM program. Both tools make a well-structured PM program significantly more capable of catching the failures that kill motors silently.
Why Electrical Failures Feel Sudden
They don't develop suddenly.
They develop in the places PM programs weren't designed to look, on timelines longer than most inspection intervals, producing symptoms that require measurement rather than observation to detect.
Bearing failures at least leave physical evidence (Electric Motor Bearing Failures: Early Warning Signs Your PM Program Should Already Be Catching). Electrical failures leave nothing until the motor stops.
The gap between "passed last PM" and "failed this morning" isn't bad luck. It's the distance between what your PM program checks and where the failure actually formed.
Closing that gap means building a PM program that treats electrical condition as a first-class failure mode — not an afterthought, not a specialist's job, and not something that only matters after the motor already failed.
Task Lists Built Around These Failure Modes
These task lists include electrical inspection and measurement tasks structured around the failure modes covered in this post:
- AC Motor preventive maintenance tasks
- DC Motor preventive maintenance tasks
- VFD preventive maintenance tasks
- Motor Control Center preventive maintenance tasks
- Contactor and Relay PM tasks
Electrical failures don't announce themselves.
But they do leave a window — between when the damage starts and when the motor stops — where the right PM program can still make a difference.
Most programs just aren't looking through it.
