Pump Seal Failures: Early Warning Signs PMs Should Be Catching

Pump Seal Failures: Early Warning Signs PMs Should Be Catching

The seal fails. Fluid sprays across the floor or vanishes into a drain. You write up the repair, replace the seal, and call it done.

Then it fails again. Different shift, same seal, same pump.

Mechanical seals don't fail at random. They fail because something changed — process conditions, alignment, bearing condition, lubrication — and the seal was the first component to make that change visible. If your PM program is only catching seal failures after the leak, it's not preventing anything. It's documenting a pattern you already have and doing nothing to break it.

The warning signs come first. Your program just has to be designed to see them.

What a Mechanical Seal Actually Does — and Why It Fails

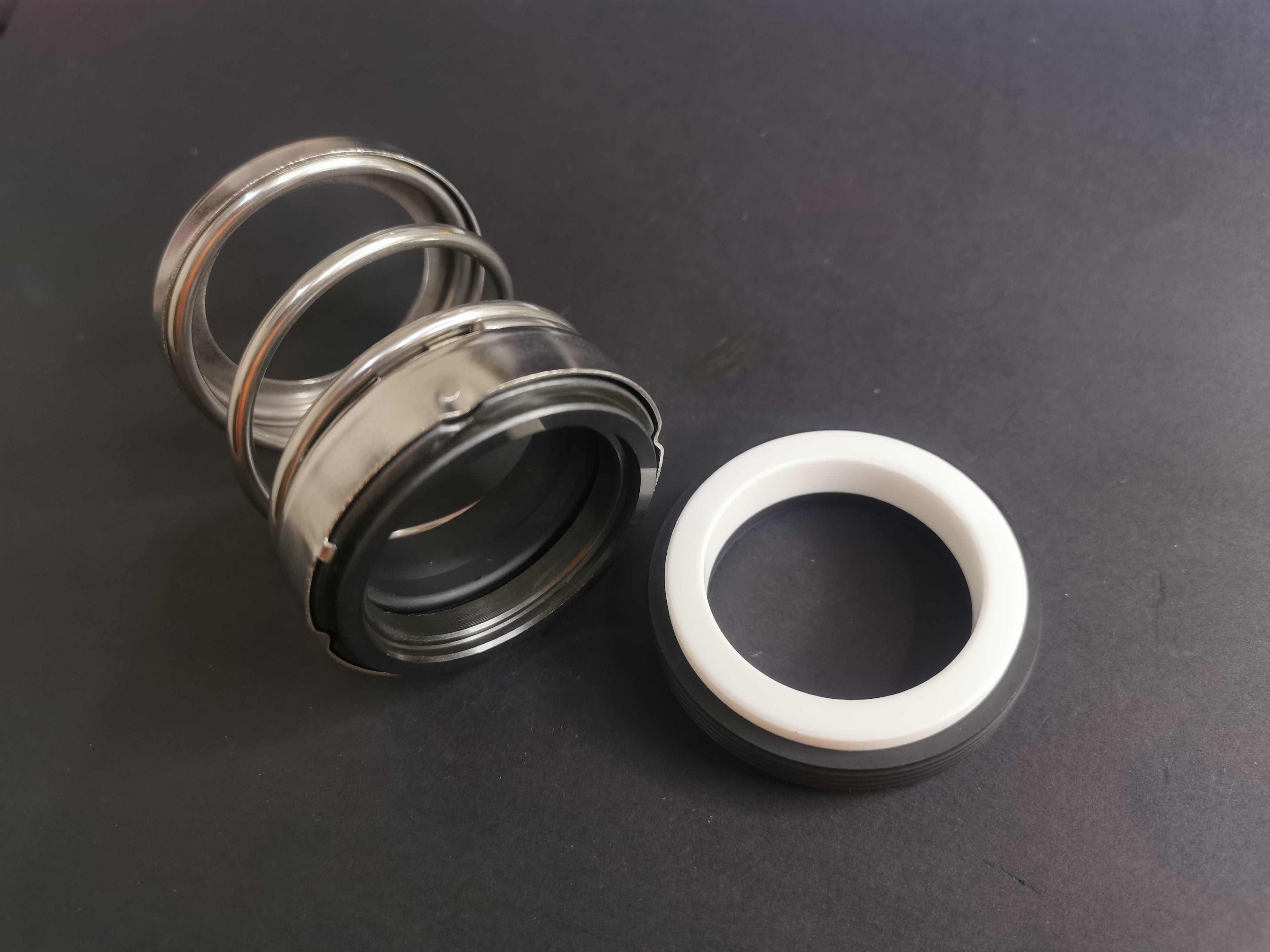

A mechanical seal creates a dynamic pressure barrier between the rotating shaft and the pump housing. Two lapped sealing faces — one stationary, one rotating with the shaft — are held together under controlled spring load with a thin film of process fluid between them. That fluid film is not a defect. It is the design.

Remove it — through dry running, vapor formation, or contaminated fluid — and the faces contact metal-to-metal. The seal surfaces score. The faces stop sealing. The leak starts.

Maintain it poorly — through misalignment, bearing wear, vibration, or excessive heat — and the seal faces move in ways they weren't designed to accommodate. Face runout increases. Spring force becomes uneven. The fluid film breaks down.

This is the core of the problem: mechanical seals fail because of conditions your PM program should be measuring on every inspection cycle. The seal itself is usually the last casualty, not the first cause.

Dry Running — The Failure Mode That Kills Seals in Minutes

A mechanical seal running dry can fail in under two minutes. The fluid film is gone. The faces are generating heat directly through friction. The elastomers cook. The seal faces crack.

Dry running happens at startup when the pump hasn't been properly primed. It happens mid-run when cavitation strips vapor across the seal faces. It happens in systems with low suction head during demand spikes. And it happens in pumps where the barrier or flush fluid supply has failed without triggering an alarm.

Your PM program should be checking suction conditions at every inspection — not just "is it running" but whether suction pressure is within the expected range for the current operating point. For pumps with seal flush plans (API Plan 11, 13, 21, 23, 32, etc.), flush flow and pressure should be verified at every PM, not assumed.

A seal that dry-ran will often show characteristic face damage: radially grooved surfaces, heat discoloration, and cracked or distorted elastomers. If you're seeing repeat seal failures on the same pump, pull the failed components before disposal. The face pattern tells you what killed it.

Heat — What It Does to Seals and How to Catch It Before It Does It

Mechanical seals have operating temperature limits. Exceed them and the elastomers harden, lose compliance, and stop sealing at the face. The O-rings and secondary sealing elements take the heat first. By the time you notice a weep becoming a drip becoming a spray, the elastomers have already been compromised.

Heat accumulates in seals through several routes. Process fluid above design temperature is the obvious one. But heat also builds when flush fluid flow is inadequate, when the pump operates significantly off its best efficiency point (BEP), or when excessive stuffing box pressure collapses the fluid film.

Thermal imaging is the best tool here. A hot seal chamber that doesn't correlate with hot process fluid is a signal. It tells you the heat is being generated inside the seal — not imported from the system — and the clock is running.

Pump PM programs that skip thermal checks are flying blind on seal condition between visual inspections. An infrared scan takes thirty seconds. The data tells you things a walk-by never will.

Vibration and Misalignment — What They Do to the Faces

Misalignment and vibration are bearing problems. They're also seal problems. The faces don't tolerate shaft movement they weren't designed for.

When the pump shaft runs eccentric due to misalignment between pump and driver, the rotating face tracks an orbit instead of a flat plane. The seal's secondary elements flex dynamically with every revolution. The spring load distributes unevenly. The fluid film thickness varies around the face. All of this accelerates wear.

Vibration amplifies the problem. High vibration at the seal means the faces are experiencing relative lateral and axial movement beyond their design tolerance. Elastomers fatigue. The lapping on the seal faces erodes unevenly. You get a spiral leak pattern rather than a clean face wear pattern.

The diagnostic tells the story: if a pump is failing seals repeatedly and the failed seal shows asymmetric or spiral wear on the faces, check alignment and vibration before the next seal goes in. Replacing the seal without addressing the source guarantees the next one fails on the same schedule.

Pump alignment is not a commissioning task. It is a PM task. Thermal growth changes coupling alignment in service. Pipe strain shifts the machine train. Alignment confirmed at cold startup is not alignment confirmed at operating temperature under load.

Bearing Condition — The Connection Most Programs Miss

A mechanical seal's sealing faces are designed with a specific axial and radial tolerance for shaft movement. That tolerance assumes the bearings holding the shaft are in acceptable condition.

Worn bearings change the picture. Increased radial clearance means the shaft deflects more under load. Increased axial play means the rotating face can move toward and away from the stationary face under pressure fluctuations. Both conditions drive uneven face loading and accelerate seal wear.

The pattern to look for: pump bearing failure typically follows bearing degradation through elevated temperature, increased vibration, and eventually audible noise. Seal failure that tracks bearing condition — seals lasting longer right after a bearing replacement, then degrading faster as the next bearing wears — is a clear signal the bearing is the primary driver.

Temperature trending at the bearing housing and regular vibration readings are the inputs your PM program needs to make this connection. Without that data, you replace the seal four times before anyone looks at the bearing.

Process Upsets and Off-BEP Operation — What They Cost You

Pump seals are sized and specified for the fluid, temperature, pressure, and flow rate the pump was designed to handle. Operate the pump consistently outside that design envelope and the seal pays the price.

Off-BEP operation is the most common source of premature seal failure that gets attributed to "bad seals." A pump running well below its design flow point recirculates internally, generates heat, creates hydraulic instability, and subjects the seal to pressure fluctuations it wasn't designed to handle continuously. A pump running significantly above design flow cavitates on the suction side, drives vapor across the seal faces, and generates shaft deflection from hydraulic unbalance.

Process upsets — temperature spikes, pressure surges, slug flow in two-phase applications — impose transient conditions that can exceed the seal's instantaneous capability even when steady-state conditions are acceptable.

Your PM program can't prevent every process upset. But it can document operating data — flow, pressure, temperature — at each inspection so that seal failures can be correlated against operating history rather than treated as random events. The pump that fails its seal every six months isn't random. It's running in conditions that predict exactly that outcome.

The Warning Signs That Come Before the Leak

The hierarchy of seal failure signals, from first to last:

Elevated seal chamber temperature — Often the first measurable indicator. The seal is generating heat before any leak is visible.

Vibration increase at seal-end bearing — Shaft movement has increased. The faces are tracking orbits they weren't designed for.

Crystalline or mineral deposits on the seal gland — Process fluid has been weeping past the faces in amounts too small to form a visible drip. The solids are left behind when the liquid evaporates.

Intermittent weeping that dries between inspections — The seal is failing at startup or during transient conditions but recovering at steady state. It will not recover indefinitely.

Visible drip at the seal gland — The faces are no longer controlling the fluid film. The leak is established.

Active spray or stream — The seal faces have separated or fractured. Emergency repair.

Most PM programs catch the last two. A program designed to catch seal failures early catches the first three — and acts on them before the seal is past saving.

What Your PM Should Be Looking For — Every Inspection

Check for deposits, discoloration, and staining around the seal gland and stuffing box. A dry pump exterior tells you nothing after a shift. Mineral deposits tell you there's been a weep.

Verify flush plan operation if equipped — flow indicator, pressure gauge, or rotameter. Flush systems fail quietly. Without verification, you don't know if the seal is getting the fluid protection it needs.

Record temperature at the seal chamber. Trend it. A five-degree rise over three inspections on a pump that hasn't changed duty is not noise — it's signal.

Check vibration at the seal-end bearing. Any pump running above 0.3 in/s overall velocity deserves a closer look. Any pump trending upward over consecutive readings is telling you something.

Verify suction conditions are within expected range for current operating conditions. Pump pulling harder than it should is generating vapor at the impeller eye — and at the seal faces.

Get a Checklist Built Around These Failure Modes

If seal failures are still showing up as surprises on your corrective work orders, the checklist being used isn't capturing the right conditions at the right frequency. These posts have what you need to build something better:

Seals don't fail suddenly. They fail last. Everything that kills them happens first.
